Pharmaceutical High Shear Emulsifying Machine 100L with Water / Oil Tank

Brand Name:	HENGYI
Model Number:	HY-LM100
MOQ:	1 Set
Price:	$16000/Set
Payment Terms:	L/C, D/P, D/A, T/T, Western Union, MoneyGram
Supply Ability:	10 Set/Sets per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

High Shear Emulsifying Machine

Mixing Speed:

0-60rpm

Homogenizer:

0-2990rpm

Heating Method:

Electric Heating/Steam Heating

Material:

Stainless Steel

Voltage:

110V/220V/380V/415V Customized

Lifting System:

Hydraulic Lifting

Condition:

New

Working Volume:

100L

Stirring Type:

Frame

Packaging Details:

Standard Wood Case

Highlight:

Pharmaceutical High Shear Emulsifying Machine

High Shear Emulsifying Machine 100L

Oil Tank Vacuum Emulsifier

Product Description

100L Pharmaceutical High Shear Emulsifying Machine with Water / Oil Tank

Introduction

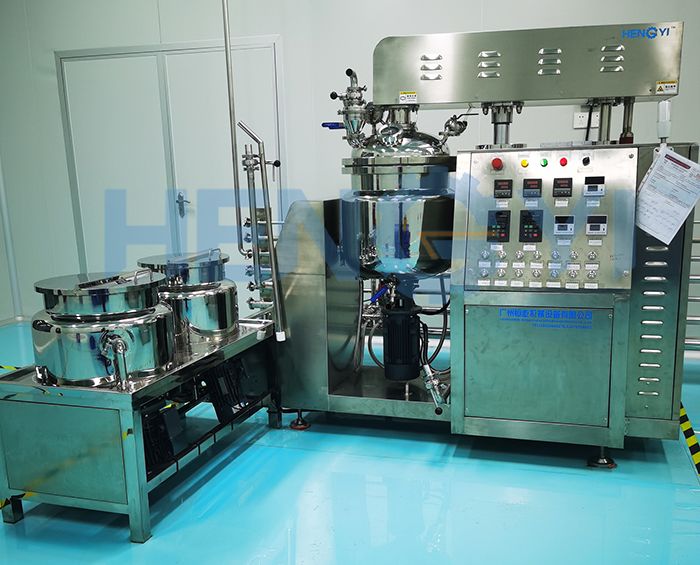

The cosmetics vacuum emulsifier is professionally designed according to the ointment manufacturing process of cosmetics and ointments etc. products through introducing advanced technology from abroad. The whole machine is composed of pre-treating boiler, vacuum emulsifying and blending boiler, vacuum pump,hydraulic system, dumping system, electric control system and work platform etc. The machine unit is featured by simple operation, stable performance, good homogenizing performance, high production efficiency, convenient cleaning, reasonable structure, small land area and high automatic degree etc.

Features

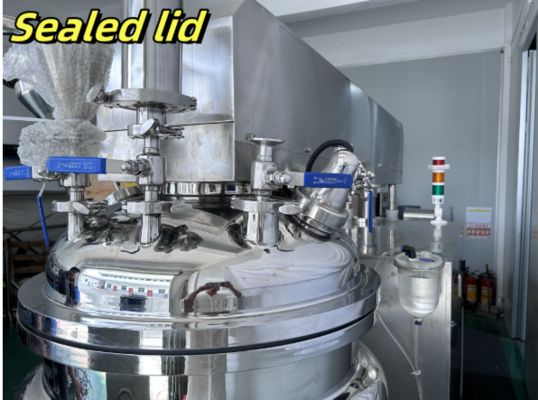

1. Integrated Vacuum Transfer System
Automatically pumps oil/water phase materials into the main vessel while simultaneously degassing the emulsion throughout processing.
2. Hydraulic Vessel Lifting Mechanism
Provides fail-safe vertical positioning for thorough cleaning of agitators, scrapers, and homogenizer assemblies - superior to pneumatic systems in stability and maintenance.
3. Programmable Thermal Control
Electrically heated/cooled jacketing with steam-heating compatibility for precise temperature management across production phases.

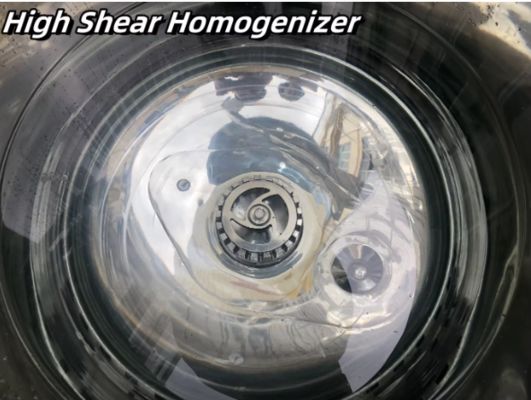

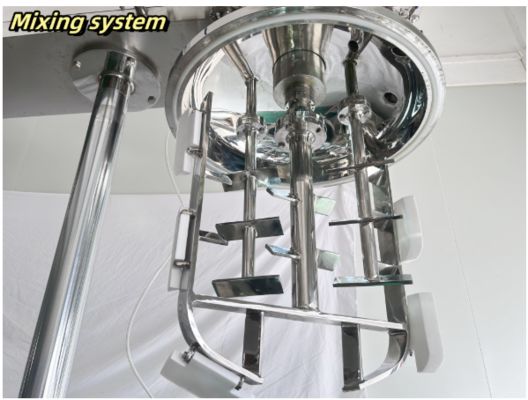

4. Dual-Axis Homogenization Technology
Combines bidirectional blending with high-shear rotor/stator emulsification for pharmaceutical-grade dispersion efficiency (ideal for cosmetic bases).

Specification

Pharmaceutical High Shear Emulsifying Machine 100L with Water / Oil Tank 0

Application

Pharmaceutical High Shear Emulsifying Machine 100L with Water / Oil Tank 1
