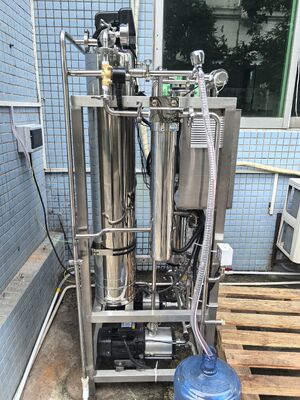

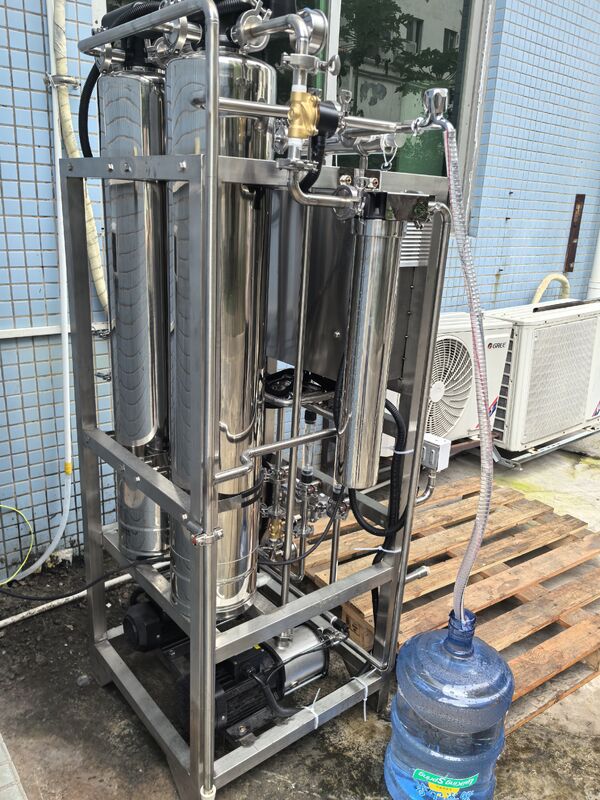

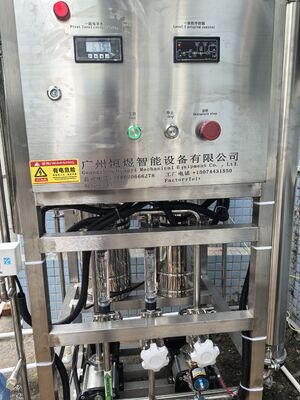

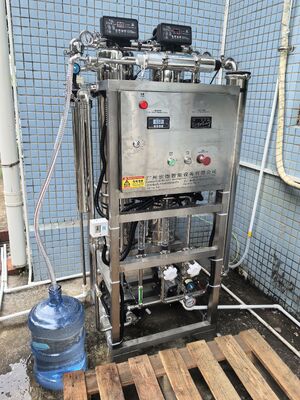

200L/H Commercial Reverse Osmosis Water Treatment System for Drinking Water

200L/H Commercial Reverse Osmosis Water Treatment System for Drinking Water

Product Overview

The 200L/H reverse osmosis water treatment system is a compact commercial RO plant designed to produce purified drinking water from municipal water, groundwater, and other freshwater sources.

Using advanced reverse osmosis membrane technology, the system removes dissolved salts, heavy metals, organic impurities, particles, and other unwanted substances from raw water, providing clean and safe water for daily drinking applications.

This small commercial RO system integrates pre-filtration, high-pressure pumping, RO membrane filtration, and control components into one complete unit, making it an ideal solution for small bottled water factories, hotels, restaurants, schools, offices, and community drinking water projects.

Why Choose Our 200L/H RO Water Treatment System?

Stable Drinking Water Quality

Raw water quality can vary due to different locations and water sources. The RO membrane filtration process provides stable purification performance by reducing:

• Dissolved salts
• Heavy metals
• Chlorine
• Suspended particles
• Unwanted minerals

Helping produce clear and better-tasting drinking water.

Compact Design for Small and Medium Projects

Many customers need professional water treatment but do not have large installation space.

The 200L/H RO system features:

• Compact skid-mounted structure
• Integrated components
• Easy installation
• Small footprint

Suitable for limited-space applications.

Multi-Stage Filtration for Better Protection

The system normally includes multiple filtration stages:

Stage 1: PP Sediment Filter

Removes:

• Sand
• Rust
• Suspended particles

Protects the following filtration components.

Stage 2: Activated Carbon Filter

Removes:

• Chlorine
• Organic substances
• Unpleasant odors

Extends RO membrane service life.

Stage 3: Reverse Osmosis Membrane

Removes:

• Dissolved solids
• Salts
• Heavy metals
• Micro impurities

Produces purified drinking water.

Energy-Efficient Commercial RO Operation

Compared with traditional water purification methods, reverse osmosis provides an efficient solution for continuous drinking water production.

The system is designed for:

• Low daily maintenance
• Reliable operation
• Long membrane lifespan
• Stable water output

Easy Operation & Maintenance

The control system allows operators to monitor the machine easily.

Routine maintenance mainly includes:

• Replacing filter cartridges
• Cleaning RO membranes
• Checking pump pressure
• Monitoring water quality

No complicated technical training is required.

Main Features

200L/H Production Capacity

Designed output:

200 Liters Per Hour

Daily production capacity:

Approximately 4,800 Liters/Day (based on 24-hour operation)

Suitable for small commercial drinking water production.

High Quality RO Membrane Filtration

The RO membrane is the core purification component, providing high rejection performance for dissolved contaminants.

Optional membrane brands:

• Dow FilmTec
• Toray
• Hydranautics

(Custom configuration available)

Food-Grade Stainless Steel Structure

Main frame and water-contact components can be customized with stainless steel materials.

Advantages:

• Corrosion resistance
• Easy cleaning
• Long service life
• Suitable for drinking water applications

Automatic Control System

The system can include:

• Automatic start/stop control
• Low-pressure protection
• High-pressure protection
• Pump protection
• Water shortage alarm

Improving safety during operation.

Standard Configuration

Technical Specifications

Applications

The 200L/H RO water treatment system is widely used for:

Bottled Drinking Water Production

Suitable for small bottled water factories producing:

• 330ml bottles
• 500ml bottles
• 1.5L bottles

Commercial Drinking Water Supply

Applications include:

• Hotels
• Restaurants
• Schools
• Hospitals
• Offices

Community Water Projects

Suitable for:

• Rural drinking water projects
• Remote areas
• Small communities
• Public water supply stations

Complete Drinking Water Solution

The RO system can be combined with additional equipment to create a complete drinking water production line:

Raw Water → Pretreatment → RO Purification → UV Sterilization → Water Storage → Filling & Packaging

Available matching equipment:

• Water tanks
• UV sterilizer
• Ozone generator
• Bottle washing machine
• Water filling machine

FAQ

Q1: What water sources can this 200L/H RO system treat?

This system can treat:

• Municipal tap water
• Groundwater
• Fresh surface water

For seawater or high-TDS water, a customized desalination RO system is required.

Q2: What contaminants can reverse osmosis remove?

The RO membrane can reduce:

• Dissolved salts
• Heavy metals
• Chlorine (with carbon filtration)
• Suspended particles
• Organic impurities

Actual removal performance depends on raw water quality and system configuration.

Q3: What raw water information is needed before purchasing?

To design the correct RO system, customers should provide:

• Water source type
• Raw water TDS value
• Water analysis report
• Required output capacity
• Local voltage standard

Water quality parameters such as TDS, hardness, iron, manganese, and chlorine are important when selecting RO equipment.

Q4: How often should RO filters be replaced?

Replacement frequency depends on raw water quality and operation hours.

Typical maintenance:

• PP filter: 3–6 months
• Activated carbon: 6–12 months
• RO membrane: approximately 2–3 years (depending on usage and maintenance)

Q5: Does the RO system need an operator?

No. The system is designed for simple operation.

Operators mainly need to:

• Start/stop the machine
• Check pressure
• Monitor water quality
• Replace consumable filters

Q6: Can this system produce bottled drinking water?

Yes. The 200L/H RO system can be used as the purification stage for small bottled water production lines.

It can connect with:

• Filling machine
• Capping machine
• Labeling machine

to create a complete bottled water solution.

Q7: Can you customize the RO system?

Yes.

Customization options include:

• Higher capacity
• Different voltage standards
• Stainless steel frame
• Additional UV/Ozone sterilization
• Different membrane brands

Q8: What is the lead time?

Standard production usually takes:

15–25 working days after order confirmation

The exact delivery time depends on configuration and customization requirements.
